China Lifute Sling Group produce Grommet Wire Rope Sling,Cable Laid Grommet Sling,Grommet Round Wire Rope Sling.

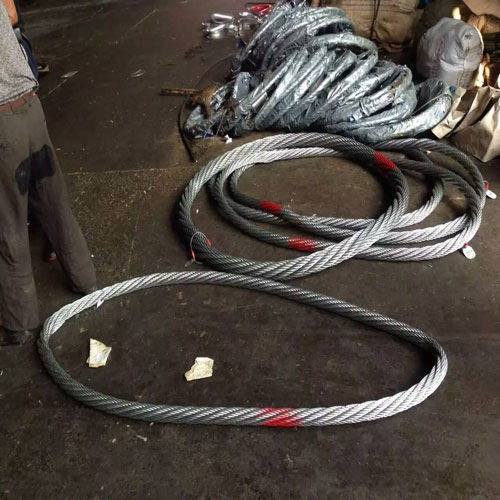

Grommet Wire Rope Sling: The Grommet Wire Rope Sling is a heavy-duty lifting tool designed for secure and efficient load handling. This sling features a grommet termination on one or both ends, which allows for easy attachment to the load and the lifting device. Constructed with premium wire rope, the grommet provides a smooth and rounded surface that minimizes the risk of damage to the load. Its robust design ensures durability and reliability, making the Grommet Wire Rope Sling an excellent choice for a wide range of industrial lifting operations.
Cable Laid Grommet Sling: The Cable Laid Grommet Sling is an innovative lifting solution that combines the strength of cable laid wire rope with the practicality of a grommet termination. This sling is designed for applications that require both flexibility and high load-bearing capacity. The cable laid construction provides excellent resistance to rotation, while the grommet termination allows for easy and secure connections. The Cable Laid Grommet Sling is an ideal choice for demanding environments where performance and safety are paramount.
Grommet Round Wire Rope Sling: The Grommet Round Wire Rope Sling is a versatile and reliable lifting accessory that offers the benefits of a round sling with the added security of a grommet termination. This sling is crafted from high-quality round wire rope, which provides exceptional strength and flexibility. The grommet termination is designed to protect both the sling and the load from abrasion and wear, ensuring a longer service life. The Grommet Round Wire Rope Sling is perfect for use in construction, manufacturing, and other industries where heavy lifting is required, offering a secure and efficient solution for moving large and heavy objects.
Grommet Wire Rope Sling
接头绳索直径 No joint rope diameter mm | 最小破断力/T Minimum breaking force | 单肢工作载荷/t Working load single-limb | 双肢工作载荷/t Pairs of limbs working load | 四肢工作载荷/t Limbs working load | ||
α= 00 | α= 450 | α= 900 | α= 450 | α= 900 | ||
10 | 6 | 1.0 | 1.8 | 1.4 | 3.7 | 2.8 |
12 | 10 | 1.6 | 3.0 | 2.0 | 5.8 | 4.0 |
16 | 18 | 3.0 | 5.6 | 4.0 | 11.2 | 8.0 |
19 | 24 | 4.0 | 7.4 | 5.6 | 14.8 | 11.2 |
23 | 38 | 6.3 | 11.7 | 8.8 | 23.4 | 17.6 |
29 | 48 | 8.0 | 14.8 | 11.3 | 29.6 | 22.6 |
34 | 60 | 10.0 | 18.5 | 14.1 | 37.0 | 28.2 |
40 | 90 | 15.0 | 27.8 | 21.2 | 55.6 | 42.4 |
46 | 120 | 20.0 | 37.0 | 28.2 | 74.0 | 56.4 |
54 | 150 | 25.0 | 46.3 | 35..3 | 92.6 | 70.6 |
60 | 200 | 32.0 | 59.2 | 45.1 | 118.4 | 90.2 |
67 | 240 | 40.0 | 74.0 | 56.4 | 148.0 | 112.8 |
75 | 300 | 50.0 | 92.5 | 70.5 | 185.0 | 141.0 |
80 | 360 | 60.0 | 111.0 | 85.0 | 222.0 | 170.0 |
87 | 420 | 70.0 | 130.0 | 99.0 | 260.0 | 198.0 |
95 | 480 | 80.0 | 148.0 | 113.0 | 296.0 | 226.0 |
100 | 588 | 98.0 | 181.0 | 138.0 | 362.0 | 276.0 |
110 | 690 | 115 | 213.0 | 162.0 | 426.0 | 324.0 |
118 | 780 | 130 | 241.0 | 183.0 | 482.0 | 366.0 |
135 | 1020 | 170 | 310.0 | 240.0 | 610.0 | 470.0 |
148 | 1200 | 200 | 370.0 | 280.0 | 720.0 | 560.0 |
160 | 1440 | 240 | 440.0 | 340.0 | 860.0 | 670.0 |
172 | 1680 | 280 | 520.0 | 400.0 | 1000.0 | 780.0 |
184 | 1800 | 300 | 550.0 | 420.0 | 1080.0 | 840.0 |
196 | 2040 | 340 | 630.0 | 480.0 | 1220.0 | 950.0 |
208 | 2280 | 380 | 700.0 | 537.0 | 1360.0 | 1060.0 |
220 | 2520 | 420 | 770.0 | 594.0 | 1500.0 | 1170.0 |
234 | 2820 | 470 | 870.0 | 660.0 | 1690.0 | 1310.0 |
246 | 3120 | 520 | 960.0 | 735.0 | 1870.0 | 1450.0 |
258 | 3420 | 570 | 1050.0 | 800.0 | 2050.0 | 1600.0 |
276 | 3960 | 660 | 1220.0 | 930.0 | 2370.0 | 1840.0 |
295 | 4500 | 750 | 1380.0 | 1060.0 | 2700.0 | 2100.0 |
306 | 4920 | 820 | 1520.0 | 1160.0 | 2950.0 | 2290.0 |
324 | 5520 | 920 | 1700.0 | 1300.0 | 3310.0 | 2570.0 |
336 | 5940 | 990 | 1800.0 | 1400.0 | 3650.0 | 2770.0 |
356 | 6600 | 1100 | 2030.0 | 1550.0 | 3960.0 | 3080.0 |
368 | 7200 | 1200 | 2220.0 | 1700.0 | 4320.0 | 3360.0 |
