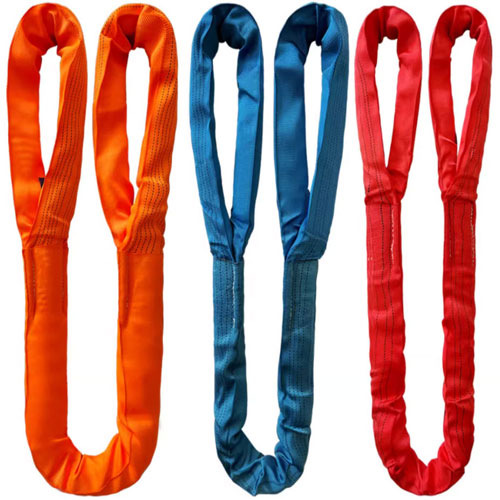

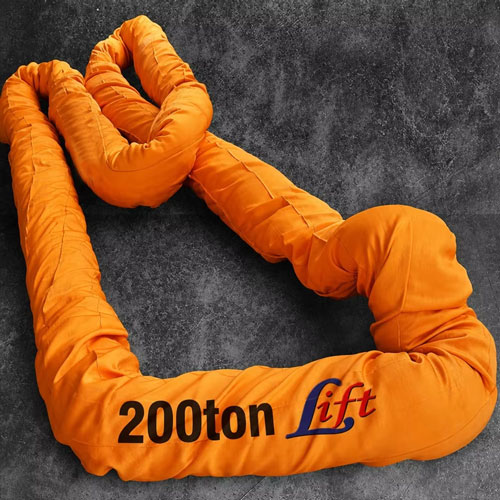

Endless Round Sling
Endless-loop polyester round slings for heavy lifting — soft, flexible and metal-free.
China Lifute Sling Group produces endless round slings and polyester endless round slings. Endless loop polyester round slings with custom WLL from 1T to 300T, manufactured to EN 1492-2 with 7:1 safety factor, color-coded, OEM/ODM available, fast delivery, third-party inspection (SGS/BV/TÜV) accepted.
Order Online1. Product Overview
An endless round sling is an endless-loop synthetic lifting sling without eye ends or metal fittings. Its load-bearing core is formed by continuous filament polyester yarns wound into a closed loop and fully enclosed by a woven polyester cover, so the whole loop shares the load evenly without stress concentration, achieving high strength utilization.
Endless round slings combine high strength with outstanding flexibility. They conform naturally to irregular and fragile loads, spread pressure over a large contact area and never damage the load surface. They are widely used in wind power, heavy machinery, steel structures, ports & marine, oil & gas and many other lifting applications.
Custom WLL from 1T to 300T, any length and multi-ply structures are available, with OEM/ODM service supported.
2. Key Features & Benefits
3. Construction
| Part | Material & Description |
|---|---|
| Core | Continuous filament polyester yarns wound into an endless loop; carries the full working load. |
| Cover | High-strength woven polyester sleeve fully enclosing the core; abrasion and UV resistant. |
| Optional Sleeve | Rubber / abrasion-resistant / fluorescent sleeve, selected according to working conditions. |
| Label | Permanently sewn-in label: WLL, batch number, standard, material and manufacturing date; customer logo available. |
4. Technical Specifications
| WLL (t) | Color Code | Approx. Diameter (mm) | Min. Breaking Force (t) |
|---|---|---|---|
| 1 | Violet | 12 | 7 |
| 2 | Green | 16 | 14 |
| 3 | Yellow | 20 | 21 |
| 4 | Grey | 24 | 28 |
| 5 | Red | 28 | 35 |
| 6 | Brown | 32 | 42 |
| 8 | Blue | 40 | 56 |
| 10 | Orange | 45 | 70 |
| 12 | Orange | 50 | 84 |
| 15 | Orange | 55 | 105 |
| 20 | Orange | 65 | 140 |
| 25 | Orange | 70 | 175 |
| 30 | Orange | 75 | 210 |
| 40 | Orange | 85 | 280 |
| 50 | Orange | 95 | 350 |
| 60 | Orange | 105 | 420 |
| 80 | Orange | 120 | 560 |
| 100 | Orange | 135 | 700 |
| 120 | Orange | 150 | 840 |
| 150 | Orange | 165 | 1050 |
| 200 | Orange | 190 | 1400 |
| 250 | Orange | 215 | 1750 |
| 300 | Orange | 230 | 2100 |
Note: diameters are typical values; the actual product is subject to drawings/samples. Length is made to order (commonly 0.5m-20m). Single-ply and 2/4/6/8-ply structures available. WLL above 300T on request.
General Parameters
| Item | Parameter |
|---|---|
| Safety Factor | 7:1 (standard) |
| Working Temperature | -40 deg C to +100 deg C (derating required above 100 deg C per standard) |
| Standards | EN 1492-2 / ISO 4878 / ASME B30.9 |
| Material | 100% Polyester (continuous filament) |
| Length | Custom (commonly 0.5m - 20m) |
| Structure | Single / 2 / 4 / 6 / 8-Ply |
5. Hitch Modes & Rated Load
| Hitch Mode | Load Factor | Description |
|---|---|---|
| Straight Lift | 100% | Lifted vertically; use at full rated WLL. |
| Choke Hitch | 80% | Sling passes through the load and chokes itself; rated load reduced to 80%. |
| Basket Hitch | 200% | Two sling legs form a basket; total load capacity up to 2x rated WLL. |
Note: in multi-leg lifting, the load per leg increases as the sling angle increases. Always calculate per EN 1492-2 or contact our technical team to confirm a safe lifting plan.
6. Applications
- Wind power equipment
- Heavy and construction machinery
- Steel structures and precast concrete
- Ports, marine and offshore operations
- Oil & gas, chemical and pipeline projects
- Precision and fragile loads
- Mining, metallurgy and power generation
- Warehousing and production line handling
7. Quality & Certifications
- Designed and manufactured to EN 1492-2 (Europe), ISO 4878 and ASME B30.9 (US).
- Incoming material inspection: batch tensile sampling of polyester yarns, cover weight and abrasion tests.
- 100% final inspection: visual check, dimension verification and fully traceable labels on every sling.
- Proof load tests at 1.5-2x WLL available with test certificates on request.
- Third-party inspection (SGS / BV / TUV) and certification documents (CE, ISO 9001) supported.
Note: certifications listed above are general; the final certificate package is subject to the documents provided by our factory.
8. Inspection & Maintenance
Pre-Use Inspection
- Check the label: WLL, length, batch number and validity must be legible and complete.
- Check the cover for cuts, abrasion, fraying or exposed core yarns.
- Check for heat damage (melting, hardening) or chemical attack.
- Check for knots, twists, deformation or split stitches.
Discard Criteria (remove from service immediately if any occurs)
- Broken or exposed core, or major cover damage.
- Heat or chemical damage affecting strength.
- Missing or illegible label.
- After overload, shock loading or a lifting incident.
Usage & Storage
- Never knot the sling, drag it on the ground or exceed the rated WLL.
- Protect sharp edges with corner protectors or sleeves.
- Store in a dry place away from sunlight, chemicals and heat sources.
- Carry out periodic inspection and record keeping per EN/ASME standards.
9. Customization Services
- Custom WLL from 1T to 300T, above 300T on request.
- Flexible length, diameter, ply and sleeve options.
- Custom color coding, printing and customer logos.
- Sampling, OEM/ODM and low MOQ available.
- Export packing (carton / wooden case / woven bag) and shipping marks as required.
10. Frequently Asked Questions
What is the difference between a round sling and a flat webbing sling?
An endless round sling is an endless loop formed by a polyester yarn core enclosed in a woven cover; it is softer, conforms to irregular loads and has no metal fittings. A flat webbing sling has a flat band construction, usually with eye ends. Choose according to your lifting application and standard.
What is the minimum order quantity (MOQ)?
Regular sizes support low MOQ. Please contact our sales team for the exact MOQ and quotation; sample orders are also welcome.
What is the delivery time?
About 7-15 days for regular sizes; bulk or customized orders are subject to the contract.
Can you provide third-party test reports?
Yes. SGS, BV, TUV and other third-party inspections are supported, and proof load test reports at 1.5-2x WLL can be issued.
Do you support custom printing and logos?
Yes. Customer logos, WLL and batch information can be printed on labels and covers.
What is the working temperature range?
Normal use from -40 deg C to +100 deg C; above 100 deg C, derate per EN 1492-2 and avoid long-term high-temperature exposure.
How long is the service life of an endless round sling?
With correct use, periodic inspection and proper storage, the service life can reach several years. Discard immediately if the core is exposed or the cover is badly damaged.
