Endless Lifting Sling

  • Round Endless Single Use Lifting Sling

Round Endless Single Use Lifting Sling

  • China Lifute Sling Group manufacture Round Endless Single Use Lifting Sling,Single-Use Lifting Slings Endless Loop.high-tenacity Round Endless Single Use Lifting Slings (WLL 500kg to 5,000kg) certified to DIN 60005 and ISO standards. Features 360° rotating bearing points, 100% virgin polyester continuous filament core, and protective seamless sleeve. Engineered for factory pre-rigged pipe bundles, steel rebar, and export breakbulk logistics. Factory-direct wholesale pricing.
  • Order online

China Lifute Sling Group manufacture Round Endless Single Use Lifting Sling,Single-Use Lifting Slings Endless Loop.

Round Endless Single Use Lifting Sling – Reliable One-Time Lifting Solution

Round Endless Single Use Lifting Sling

Manufactured by China Lifute Sling Group—a premier Endless Lifting Sling Manufacturer with over 40 years of precision weaving expertise—the Round Endless Single Use Lifting Sling is constructed from high-tenacity, 100% virgin polyester (PES) continuous filament yarns encased within a heavy-duty seamless tubular protective jacket.

Unlike traditional eye-and-eye slings with fixed termination points, the continuous loop design allows crane hooks and cargo bearing points to be shifted freely across the entire 360-degree circumference before each lift. This distributes contact pressure, prevents localized abrasive wear, and maximizes choker hitch efficiency when lifting smooth, cylindrical, or fragile loads.

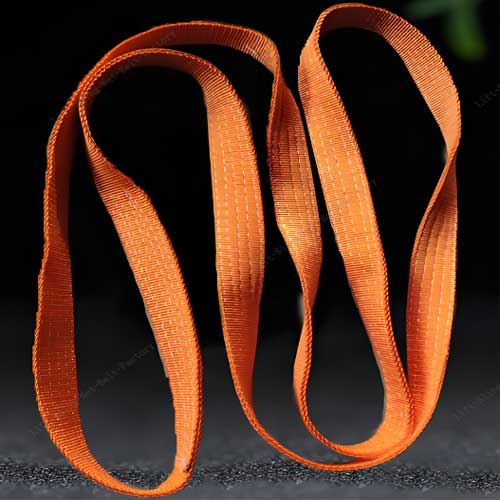

Round Endless Single Use Lifting Sling Continuous Loop Construction by China Lifute Sling Group

Figure 1: Continuous closed-loop polyester round endless single-use lifting sling for bulk cargo export.

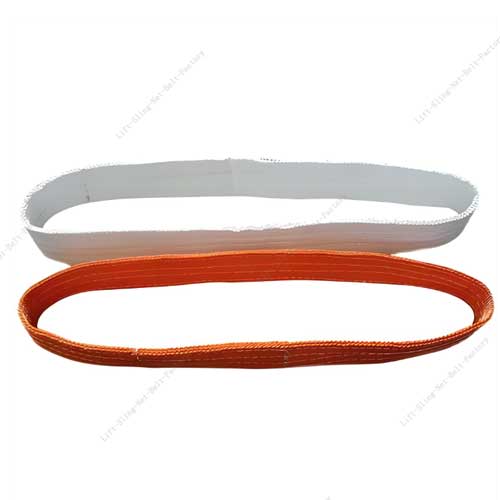

100% Virgin High-Tenacity Polyester Continuous Filament Core Matrix for Endless Lifting Slings

Figure 2: High-tenacity continuous filament core enclosed in a protective tubular woven sleeve.

2. Key Technical Features & Operational Benefits

  • 360-Degree Rotatable Bearing Points: Shifting the contact point around the circumference prevents localized friction and extends load-bearing safety across multi-stage transit transfers.

  • 30%-50% Greater Choker Grip: Seamless tubular profiles conform organically to cylindrical cargo contours, providing exceptional clamping friction on steel tubes and rebar bundles without surface scratching.

  • Zero Reverse Logistics Costs: Certified under DIN 60005 for single-use export logistics. Costed directly into cargo packaging and destroyed post-unloading, eliminating expensive return freight and recertification.

  • Low Elongation Core (<3% at="" rated="" wll="">100% virgin polyester continuous filament core provides smooth, rigid load control without dangerous bounce.

  • Factory Pre-Rigged Loading: Bundles are pre-slung at the factory prior to containerization, enabling immediate crane hookup at destination ports and reducing vessel discharge times by up to 60%.

  • Corrosion & Weather Resistance: Highly resistant to UV radiation, moisture, grease, and industrial acids across working temperatures from -40°C to +100°C.

3. Technical Specifications & Multi-Hitch Load Capacity Table

The table below provides technical parameters, working load limits (WLL), mode factors, and dimensions for China Lifute Round Endless Single Use Lifting Slings:

Model CodeStraight Vertical (1.0x)Choker Hitch (0.8x)Basket 90° (2.0x)Basket 45°-60° (1.4x)Sleeve Width (Flat/Round)Min. Breaking Load (5:1)EWL Length Range
LFT-ESU-0500500 kg400 kg1,000 kg700 kg30 mm / 18 mm2,500 kg (24.5 kN)0.5m – 10.0m
LFT-ESU-10001,000 kg800 kg2,000 kg1,400 kg35 mm / 22 mm5,000 kg (49.0 kN)0.5m – 15.0m
LFT-ESU-15001,500 kg1,200 kg3,000 kg2,100 kg40 mm / 25 mm7,500 kg (73.5 kN)0.8m – 15.0m
LFT-ESU-20002,000 kg1,600 kg4,000 kg2,800 kg45 mm / 28 mm10,000 kg (98.1 kN)1.0m – 20.0m
LFT-ESU-25002,500 kg2,000 kg5,000 kg3,500 kg50 mm / 32 mm12,500 kg (122.6 kN)1.0m – 20.0m
LFT-ESU-30003,000 kg2,400 kg6,000 kg4,200 kg55 mm / 35 mm15,000 kg (147.1 kN)1.2m – 20.0m
LFT-ESU-50005,000 kg4,000 kg10,000 kg7,000 kg70 mm / 45 mm25,000 kg (245.2 kN)1.5m – 20.0m

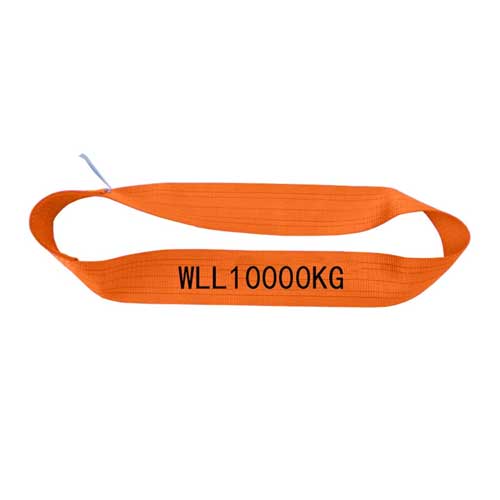

Round Endless Single Use Lifting Sling Multi-Pack Export Packaging

Figure 3: High-density palletized packaging ready for international export shipping.

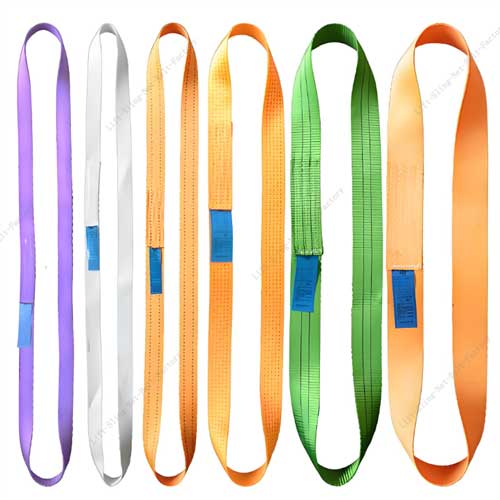

Choker Hitch Lifting Steel Pipe Bundles with Round Endless Single Use Sling

Figure 4: High-friction choker hitch application on industrial steel pipe bundles.

4. Structural Comparison: Endless vs. Looped End vs. Reusable Round Slings

Technical DimensionRound Endless Single Use Sling (1362.html)Looped End Single Use Sling (1488.html)Standard Reusable Round Sling
Core ArchitectureContinuous closed-loop filament core inside seamless sleeveFlat woven webbing with reinforced sewn eye loopsContinuous multi-filament core in double-layer woven sleeve
Bearing Point Rotation360° fully rotatable around entire circumferenceFixed bearing points at eye terminations & body360° fully rotatable around entire circumference
Safety Factor5:1 (Standard One-Way) / 4:1 (Economic) / 7:1 (Spec)5:1 (Standard One-Way) / 4:1 (Single-Trip Export)7:1 (EN 1492-2 / ASME B30.9 Industrial Standard)
Logistics Cost ProfileUltra-low unit cost; 100% elimination of return freightLow unit cost; zero reverse logistics; fast hookupHigh acquisition cost; requires return freight & recertification
Best ApplicationsPipe bundles, rebar rods, timber packs, breakbulk pre-riggingPalletized goods, machinery crates, container pre-slingingPermanent factory rigging, repetitive heavy foundry lifts

5. Industrial Applications & Use Cases

China Lifute Round Endless Single Use Lifting Slings are deployed globally across demanding industrial sectors:

  • Steel Tube, Pipe & Rebar Export Logistics: Superior friction clamping around cylindrical bundles; protects coatings against scratching and deformation.

  • Timber, Sawn Lumber & Plywood Packaging: Non-staining flexible rigging stays secured throughout multi-modal transport.

  • Precast Concrete & Modular Building Elements: Factory pre-rigging allows immediate crane attachment on construction sites without worker climbing.

  • Maritime Breakbulk Shipping: Pre-slung cargo in vessel holds accelerates ship turnaround times and minimizes demurrage.

6. Safe Handling, Standards & Mandatory Disposal Protocol

In accordance with DIN 60005 and international safety guidelines:

  1. Identification Tagging: Each sling carries a distinct warning tag stating "ONE WAY ONLY - DO NOT RE-USE" along with rated WLL and batch traceability.

  2. Sharp Edge Protection: When rigging around edges with radius r < 3mm, protective corner sleeves must be used to prevent fiber severance.

  3. Mandatory Disposal Protocol: Upon final unloading at the destination site, single-use slings must be severed and discarded to prevent hazardous re-use.

7. Related Product Categories & Internal Navigation

Explore our complete manufacturing lineup of certified industrial lifting equipment:

8. Frequently Asked Questions (FAQ)

What is a Round Endless Single Use Lifting Sling?

A Round Endless Single Use Lifting Sling (Continuous One-Way Round Sling) is a closed-loop synthetic rigging sling made from continuous high-tenacity polyester filament yarns encased in a protective outer sleeve. It is engineered specifically for one-trip export logistics, pipe bundling, and pre-rigged cargo transportation.

What is the advantage of an endless closed-loop design over eye slings?

The continuous closed-loop design allows the rigger to rotate the bearing point 360 degrees around the entire circumference. This distributes friction and contact pressure across the entire loop rather than concentrating stress on fixed eye terminations, enhancing choke hitch efficiency and cargo stability.

What safety standards apply to single-use endless slings?

China Lifute single-use endless slings comply with DIN 60005, ISO 4878, and ASME B30.9. Standard disposable slings are manufactured with a 5:1 or 4:1 safety factor for one-way export shipments, while heavy-duty industrial specifications with a 7:1 safety factor are available upon request.

Why must single-use slings be destroyed after final unloading?

Single-use slings are engineered for a single continuous transport cycle (from factory loading, transit, to destination unloading). Once the cargo reaches its final destination, the slings must be cut and destroyed in accordance with DIN 60005 safety regulations to prevent unauthorized and hazardous re-use.

Source Directly from China's Leading Sling Factory

China Lifute Sling Group supplies certified Round Endless Single Use Lifting Slings to global pipe mills, steel exporters, and maritime shipping lines. Request factory-direct wholesale pricing, CAD technical sheets, and sample packs today.
